MELlabs

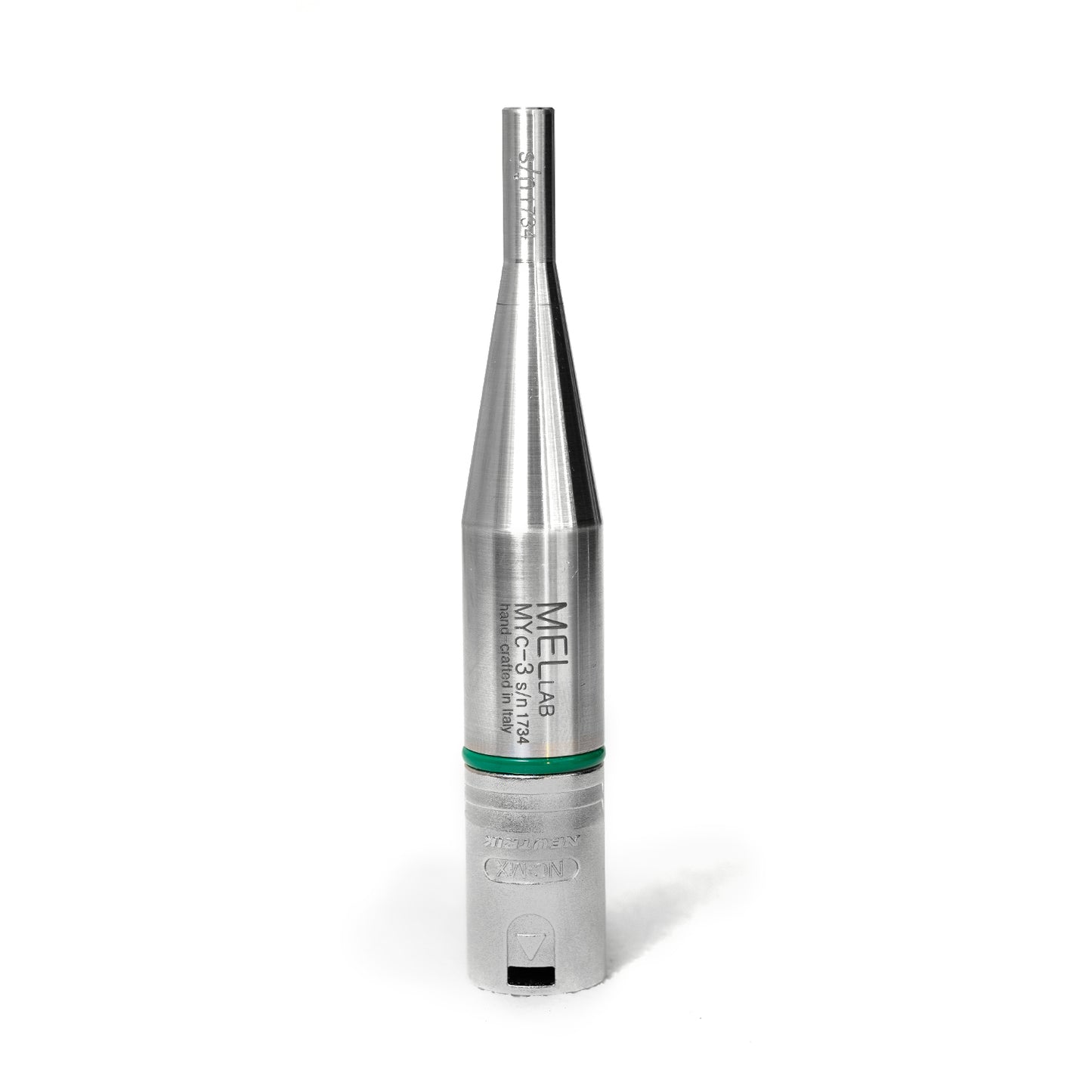

MYc-3 (Measurement Microphone)

MYc-3 (Measurement Microphone)

Regular price ₹ 25,899.00 (+18% GST)
Regular price Sale price ₹ 25,899.00 (+18% GST)
Sale Sold out
Shipping calculated at checkout.
In stock, ready to ship

48V omnidirectional pre-polarized condenser microphone

Polarity: A change in positive pressure on the diaphragm produces a positive voltage on terminal 2 of the XLR

Free field frequency response, 0°, +/- 1 dB: 10-10000 Hz
Free field frequency response, 0°, +/- 2 dB: 10-22000 Hz
Sensitivity (@ 250Hz; +/-2 dB ) 15 mV/Pa [-36.5 dB re 1V/Pa]
Maximum SPL (THD < 3 %) 140 dB SPL
Noise <23 dBA SPL equiv. (typical 22 dBA)
Power supply 48 V [5mA] phantom power
Temperature coefficient +0.035 dB/°C
Operating temperature -10 °C to +50 °C

  • Free Shipping
  • 15 days return
  • Secure checkout
View full details
