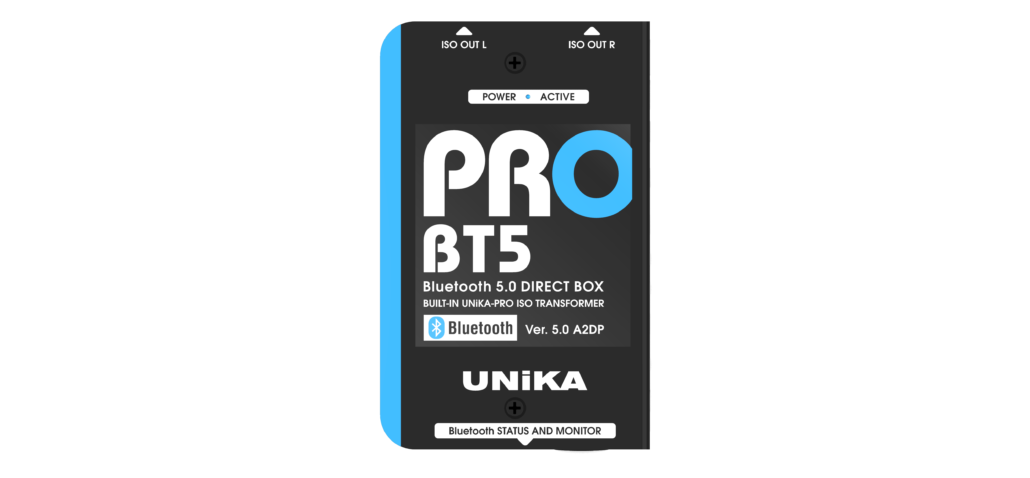

PRO BT5 has a built-in standard Qualcomm Bluetooth 5.0 module, the receving distance can reach an astonishing 35 meters, and a built-in independent headphone monitoring output.
PRO BT5 is a passive DI box specially designed for playing back music from wireless mobile devices and built-in Bluetooth Ver.5.0 A2DP DUAL MODE module. The balanced output level will not be affected by the potentiometer. The output side is equipped with a TYPE-C USB terminal which requires a 5VDC power adaptor, power bank or USB port from computer to power the BT5 such as the power supply method of the general mobile device. BT-5 is excluding the TYPE-C cable and power adaptor.
The built-in Bluetooth module has BR/EDR dual-mode control function, A2DP stereo playback mode and BLE energy-saving mode. And using Qualcomm chips and DA/DSP, audio converting and sampling rate are 16bit and 44.1KHz.
The PRO BT5 has a pair of built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformers. The transformer has a special copper foil layer and a dedicated grounding layer, which can restore the high signal/noise ratio and dynamic sound of the device, and avoid unnecessary Leakage caused by radio frequency interference, grounding interference and potential difference.
PRO BT5 is especially suitable for mobile phones, computers and any of Bluetooth music players. It converts wireless signals into low-impedance balanced signals, which is convenient for extending the wiring distance and blocking interference.
PRO BT5 has built-in mini TRS headphone monitor output and monitor volume control, which can drive 16Ω~300Ω headphones to be allowing users to monitor the content that needs to be played in advance.
Note: Since the device does not include charging identification IC, some of power bank with QC function may not be available or may stop supplying power halfway because the IC is not detected.
On the other hand, the power bank with automatic stand by mode is not recommended.
- Built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformer for each channel
- Built-in headphone amplifier with independent mini TRS jack and volume control
- 16bit convert rate and 44.1KHz over sampling
- Compatible with Windows, Mac OS, iOS and Android systems
- Ver 5.0 Bluetooth module with BR/EDR dual mode control and A2DP/AVRCP/HFP/HSP/HOGP/PBAP/SPP profiles support and BLE mode
- Type-C USB power supply terminal to be supplied power by external 5VDC power adaptor, power bank or USB port from computer.
- The output is equipped with a GND/LIFT switch
Circuit principle - Passive/Transformer balance output
Bluetooth Version - Ver 5.0 A2DP DUAL MODE with BLE, DID list ready
On board DA convert & sample rate - 16bit / 44.1KHz
Communication codec - SBC / AAC, A2DP standard
Power supply - 5VDC supplied from external power supply or Power bank through Type-C connector with
LED status indicator
Blue-tooth syncronization indicator - LED
Actual transmission distance - 25~35 meters tested by Android & iOS
Output connector - 2 x Male XLR through ISO Transformer
Output GND/LIFT switch - Shared push button
Max Output level - 0.99Vrms
Headphone power output - 30mW per channel into 32Ω,
5mW per channel into 600Ω
Frequency response - 20Hz-20KHz, ±0.5dB
S/N ratio @20Hz~20KHz un-weight - >95dB
T.H.D. @1KHz 0dBV output - <0.005%
Transformer Ratio - 1:25:1
Output impedance - 50Ω, transformer balance
Chassis - 1.6mm/1.2mm steel cabinet and chassis plus
acrylic to improve wireless penetration
Surface finished - Durable complex painting
Dimension (W x D x H) - 78 x 124 x 46 mm
Weight - 0.61Kg
Shipping weight - 0.65kg
