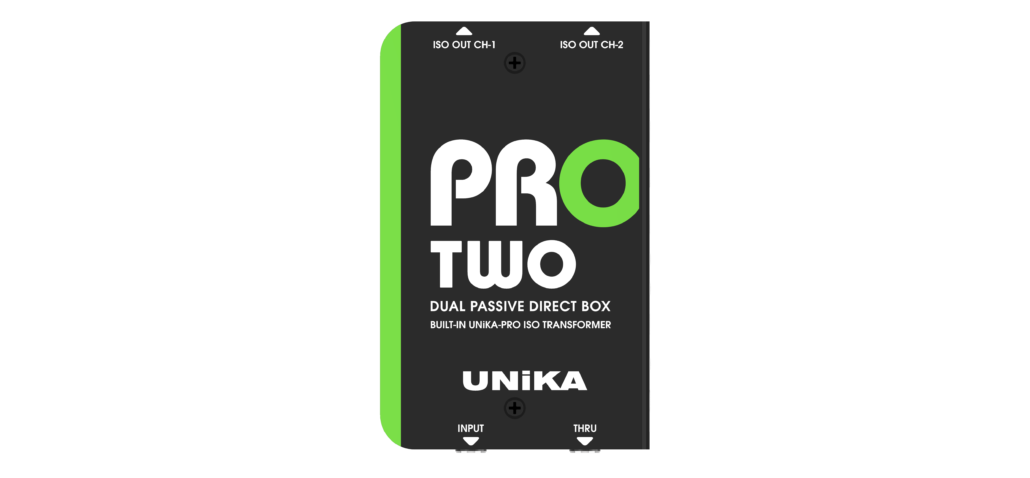

The PRO TWO dual channel passive DI is ideal for keyboard instruments, electronic drum pads, DJ equipment and media players. No batteries or +48V power supply are required, and a low distortion isolation transformer is built in.
PRO TWO is a passive dual-channel DI box. No need to install battery or provide phantom power to make it work.
PRO TWO has a pair of built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformers, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary leakage caused by radio frequency interference, ground interference and potential difference.
PRO TWO is particularly suitable for electronic musical instruments, recording studios and fixed installation projects that do not use mixers. It converts high-impedance signals into low-impedance balanced signals, which facilitates extending the wiring distance and blocking interference.
The PRO TWO uses a pair of TRS socket on the input, and a pair of TRS through out are convenient for musician to pass the direct signal to the instrument amplifier. In addition, it is equipped with a 0/-20dB attenuation switch, which is suitable for various types of audio signals with high and low impedance. The output terminal is also equipped with a GND/LIFT button to quickly eliminate ground noise.
- Built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformer for each channel
- The input socket uses a pair of TRS jacks
- Use a pair of TRS jacks as through out terminal
- There is 0dB/-20dB input signal attenuation switch
- The output is equipped with a GND/LIFT switch
Circuit principle - Passive/Transformer balance output
Input connector - 2 x TRS
Thru connector - 2 x TRS
Input pad switch - 0/-20dB push button
Output connector - 2 x Male XLR through ISO Transformer
Output GND/LIFT switch - Shared push button
Input impedance - 1KΩ / 0dB & -20dB
Output impedance - 50Ω
Max. input level before clipping - +22dB
Max Output level - +22dB
Frequency response - 20Hz-20KHz, -0.05/+0.25dB
S/N ratio @20Hz~20KHz un-weight - >120dB
T.H.D. @1KHz 0dBV output - <0.02%
Transformer Ratio - 1.25:1
Chassis - 1.6mm/1.2mm steel cabinet and chassis
Surface finished - Durable complex painting
Dimension (W x D x H) - 78 x 124 x 46 mm
Weight - 0.64Kg
Shipping weight - 0.67kg
